Top stirred reactor systems

10 ltr to 100 ltr top stirred autoclave and pressure vessels

Request a quote
  • Descripton

The pilotmate series of high pressure reactors include 10ltrs to 100ltrs net filling volumes. Once the research process is developed, this range is most used for scaling up to a pilot level before proceeding to full scale manufacturing. These stirred pressure reactors are also used for the production of high value or precious chemicals and other material for which the production throughput is low. As standard, they come with SS trolley mounting with heating, cooling, & stirring arrangements, zero leakage high torque magnetic coupling, quick opening clamp design, inlet, outlet & charging valves, bottom drain valve, pressure gauge, safety rupture disc & SS control panel with programmable temperature & speed controller. Customized automated & exproof pilot plants are developed using these volumes with turnkey solutions. SS316 material with 100 bar @ 300°C rating are quickest available running models with options upto 350bar & 500°C & other materials. Depending on the state of installation, these reactors are marked with ASME U stamp before registration in the Australian Worksafe.

Available range:

• 100 bar, 200 bar, 350 bar

• 300°C, 500°C

• SS316/316L, Hastelloy C, Hastelloy B, Inconel, Monel, Nickel, Titanium, Zirconium, etc.

Request a quote

Related Products

Non-stirred reactors

Non-stirred reactors from 10-100 ltr

Get details

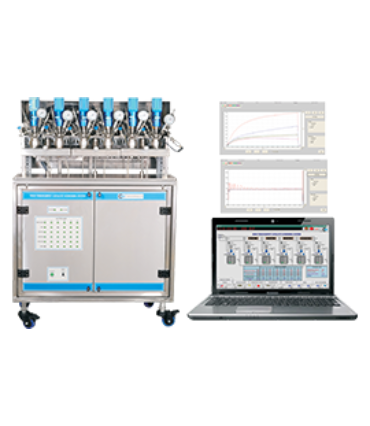

Multiple reactors
